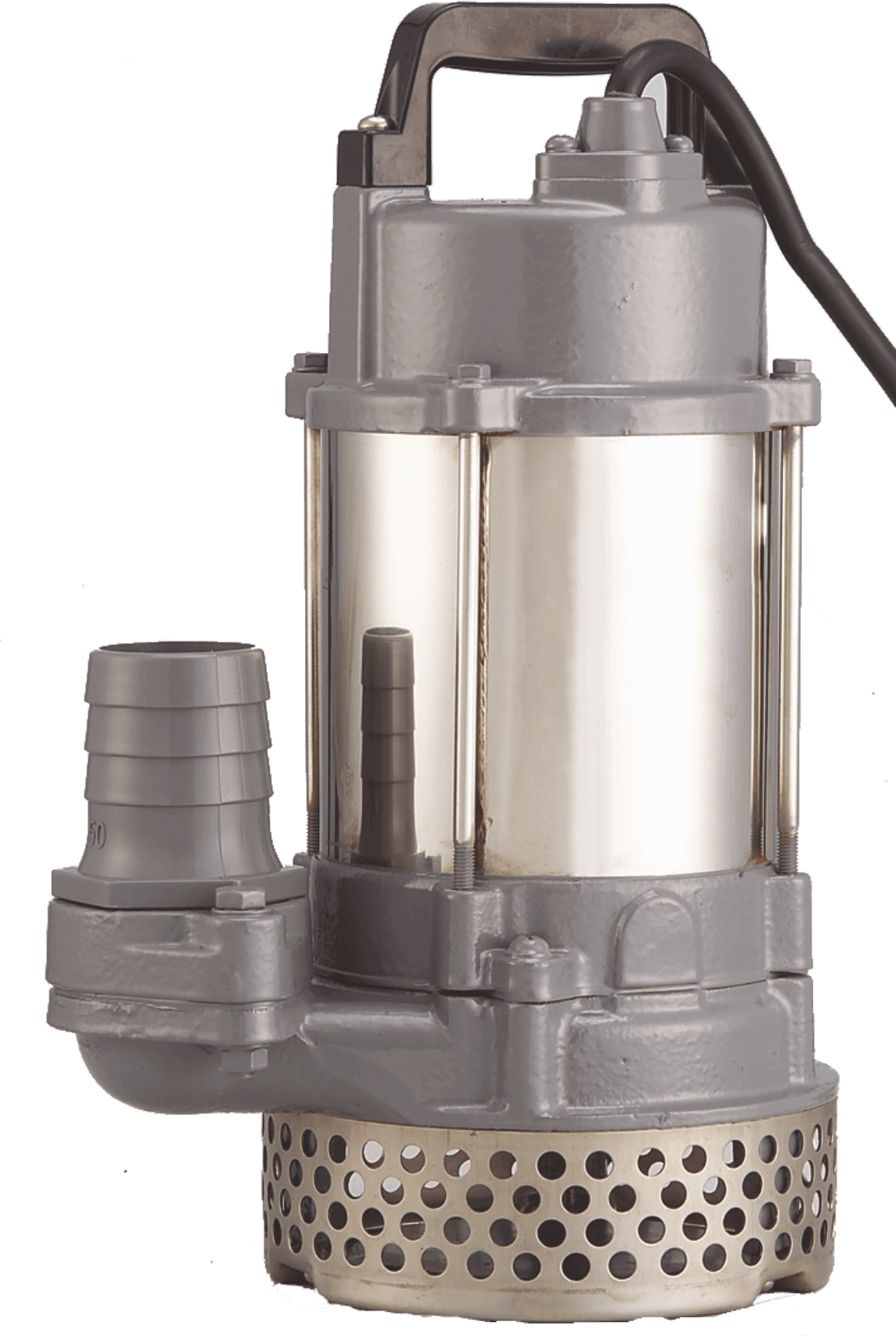

Submersible De-watering Pump
Range:
Maximum flow: 340 m3/ hr
Maximum head: 68 m
Temperature: up to 40°C
Product Design Features:
Vertical submersible sewage pumps
Stage: Single
Free flow impeller
Free passage up to 45mm
Double mechanical seal
Oil barrier chamber with float switch winding / bearing temperature indicators / moisture sensor
Optional features:
Stationary / portable installation
Dry / wet pit installation
With / without turbulator
Level sensor for single phase versions
With / without ceram coating for aggressive liquid
Material of Construction:
Casing: Cast iron / Engineering plastic
Impeller: Cast Iron / SS / Engineering Plastic
Other materials on request
Application:
Dewatering dirty water containing sand
Construction sites
Fountains
Prime Movers:
Submersible electric motors with IP68 protection variety of motors include oil cooled, media cooled motors, flameproof motors
